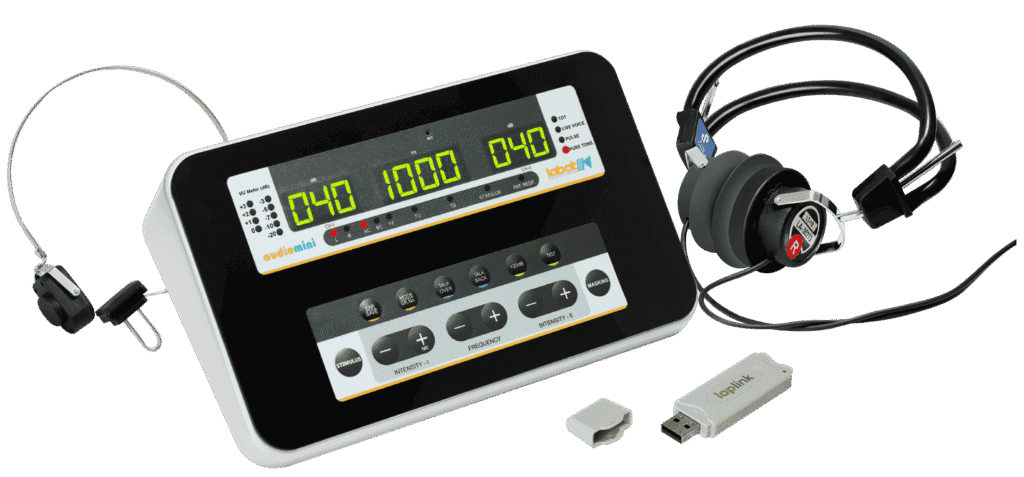

Audiomini LABAT
Digital Audiometer
Audiometer istimewa dengan harga terjangkau dan didukung teknologi terbaru
125-8K
Hz Frequency Range
120
dB HL Intensity
2
Versions Available
6+
International Certifications
Fitur-fitur Audiomini LABAT
Audiomini juga merupakan Audiometer dengan kemampuan diagnostik penting dalam satu paket
Product Information
Product Information
| Family | : AUDIOMETRY |
| Brand/Model | : AUDIOMINI |
| Model No. | : 337701001 |
| Environmental Storage Temperature | : -20 °C to +50 °C |
| Opertaing Temperature | : 5 °C to +40 °C |
| Operating Relative Humidity | : 10 – 90% |
Product Other Information
Product Other Information
| Intensity Range : | Air Conduction: -10 dB HL to +120 dB HL |
| Bone Conduction: -10 dB HL to +75 dB HL | |
| Mode : | Masking: White Noise |
| Pulsed: 2.5 Hz, 50%, 200+200 mS | |
| Normal ON, Normal OFF | |
| Pure Tone Frequency : | AC: 125 Hz – 8000 Hz |
| BC: 250 Hz – 8000 Hz |
Technical Specifications
Comprehensive specifications for accurate hearing assessment
Frequency Range
Air Conduction
125 Hz to 8000 Hz
Bone Conduction
250 Hz to 8000 Hz
Intensity Range
Air Conduction
-10 dB HL to +120 dB HL
Bone Conduction
-10 dB HL to +75 dB HL
Versions
| Version | AC Transducer | BC Transducer |
| V 1.0 | LT 10 | LB 70 |
| V 4.0 | TDH 39 | B 71 |

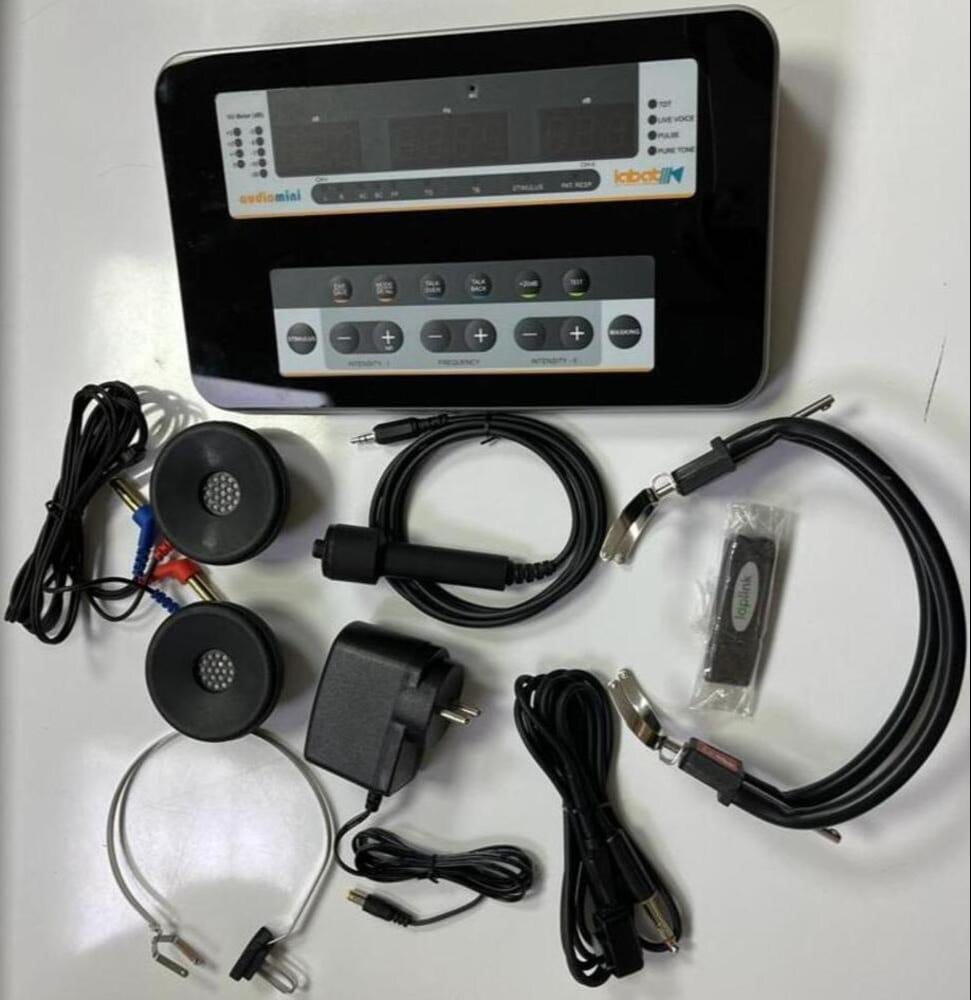

Accessories
- LT-10 Headphone
- Calibration Certificate
- Carrying Case
- LB 70 (Bone Vibrator)
- Patient Response Switch
Detailed Specifications
Maximum Output Levels (dB HL)
| Frequency | AC (dB HL) | BC (dB HL) |
| 125 | 80 | 40 |
| 250 | 105 | 60 |
| 500 | 115 | 65 |
| 1K | 120 | 75 |
| 2K | 120 | 70 |
| 3K | 120 | 70 |
| 4K | 120 | 40 |
| 6K | 120 | 40 |
| 8K | 105 | 40 |
| Frequency | 125 | 250 | 500 | 1K | 2K | 3K | 4K | 6K | 8K |
| AC (dB HL) | 80 | 105 | 115 | 120 | 120 | 120 | 120 | 120 | 105 |
| BC (dB HL) | 40 | 60 | 65 | 75 | 70 | 70 | 40 | 40 | 40 |
Additional Specifications
| Standard Tests | Signal Mode |
| 1. Air Conduction | 1. Normal ON, Normal OFF |
| 2. Bone Conduction | 2. Masking – White Noise |
| 3. Live Voice | 3. Continuous |
| 4. Tone Decay Test (TDT) | 4. Pulsed (2.5 Hz, 50%, 200 + 200 mS) |
| 5. Free Field* |
| Technical | Notes |
| 1. Power Supply: 220V, 50Hz | 1. Available optionally at additional price< 1% |
| 2. Harmonic Distortion | 2. Specifications and features can be changed without prior notice |
Certifications
IEC 60601-1:2005
ISO 13485:2016
Authorized GeM OEM
ISO 9001:2015
CDSCO Approved
ZED Certificate
RoHS Compliance
